Linear Precision Metrology
24" Linear Scale
24" Linear Scale
Regular price
$705.00 USD
Regular price
Sale price
$705.00 USD
Unit price
per
Couldn't load pickup availability

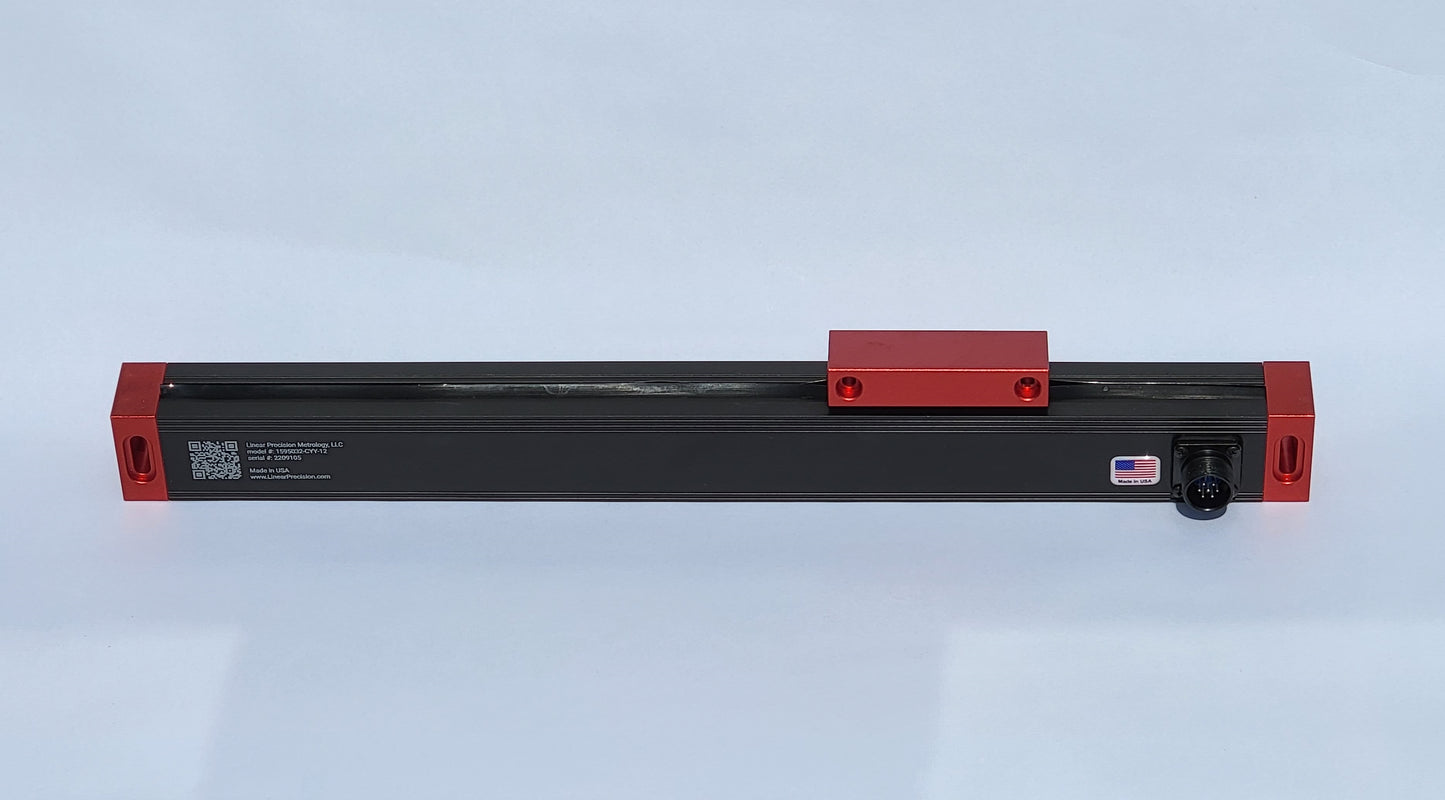

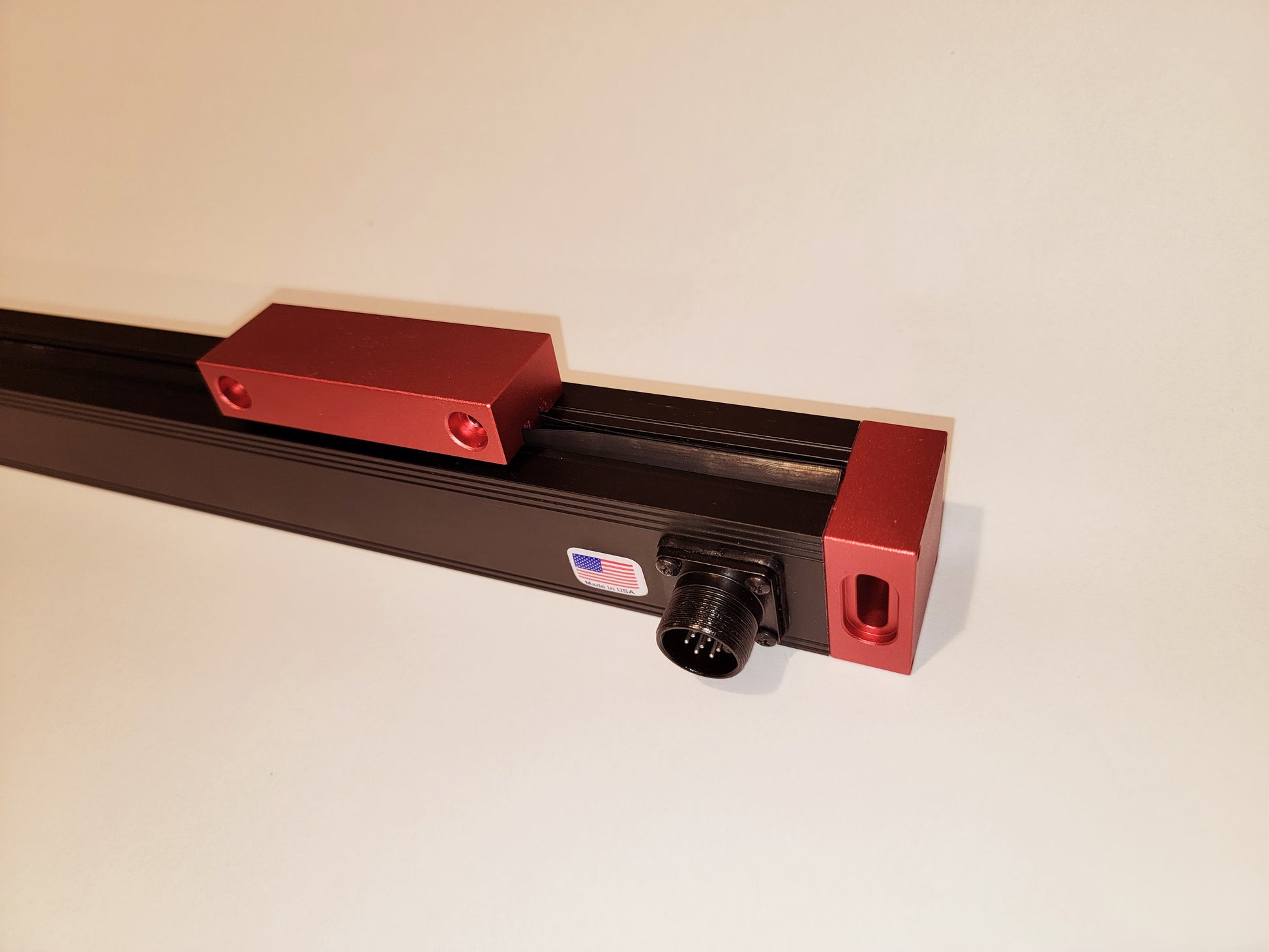

A 24" Genesis Series professional grade Optical Linear Digital Scale with 0.000125" accuracy. Our linear scales are made from high-quality parts that were designed, manufactured, assembled and supported in the USA. Our chassis feature 1/8" thick anodized aluminum for rigidity, toughness and improved repeatability. Our cable-free optical head design allows for tight cable routing to prevent cable snag damage during machine movements. Features include precision CNC parts, wireless connectivity, hall effect end-of-travel detection to prevent over-travel damage, cable-free optical heads, and liquid-proof quick connect aerospace connectors. We also offer adjustable hall-effect travel-stop detectors to prevent unexpected travel crashes into fixtures.
Materials
Materials
Dimensions
Dimensions
Care information
Care information
